PTH - 100
Machinery Directive 2006/42/CE
Mast climbing working platforms EN-14195:98
Electromagnetic compatibility directive 89/336/EC
Low voltage directive 73/23/EC
Safety of machinery – electrical equipment of
machines – part 1: General requirements EN 60204-1

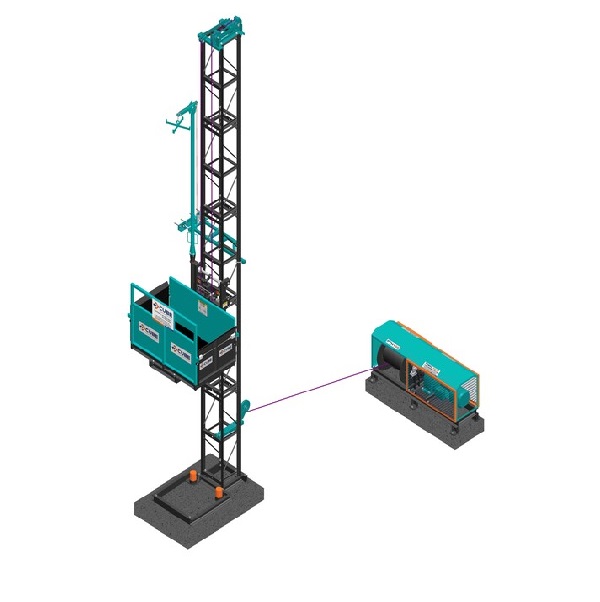

PTH - 100
P CUBE Tower Hoist is designed to offer the most cost efficient vertical transport solution on site and is delivered 1000 KG & 1200 KG
Net capacity with three phase brake motor. P CUBE Tower Hoist unit has Multi-Functionality, and can be used for either to transport
construction material or TMT bars. It’s robust and simple design makes it suitable for all vertical access, including direct to buildings
for new construction or refurbishment work. Safety is paramount in all P CUBE machines. The P CUBE Tower Hoist conform to the
latest safety standards IS 12466 : 2012 which not only ensure safety of the operation but also lays down requirements for capacity,
construction, performance and testing of Hoist. Safety braking of carriage shall be provided to cater wire rope failure
SPECIFICATION
| MODEL | PTH100 |
|---|---|
| Gross Load | 1250 kg. |
| Net Load | 1000KG. |
| Wire Rope | 12 mm (6 X 36 ) |
| Speed | 30 Mtr./ Min. |
| Height | 120 Mtr. |
| Motor Capacity | 10HP (7.5 KW) Brake Motor |
| Mast section | Square 500 mm x 400 mm x 1.5 Mtr. L 50x50x6 mm Angle |
| Wall tie interval | 6 Mtr. |
| Rectangle Cage. (Inside) | 1.50 (L) x 0.80 (W) x 0.7 (H) mtr. |
SAFETY FUTURE
| Power fail safe brake motor |
|---|
| Top limit |
| Bottom limit |
| Safety Brake |
| Full Covered Wire Rope Drum |
| Full Covered Electrical motor and Gear box. |
OPTIONAL FUTURE
| Concrete Bucket ( Tilting Type ) | 300 Litres / 0.3 Cubic Meter |
|---|---|
| Rebar carrier | 7 Mtr Lg. (Horizontal) |
| Floor Selection | Yes (Optional ) |
| Erection Crane | Manual Type |
