PTH - 120
PTH - 120 features

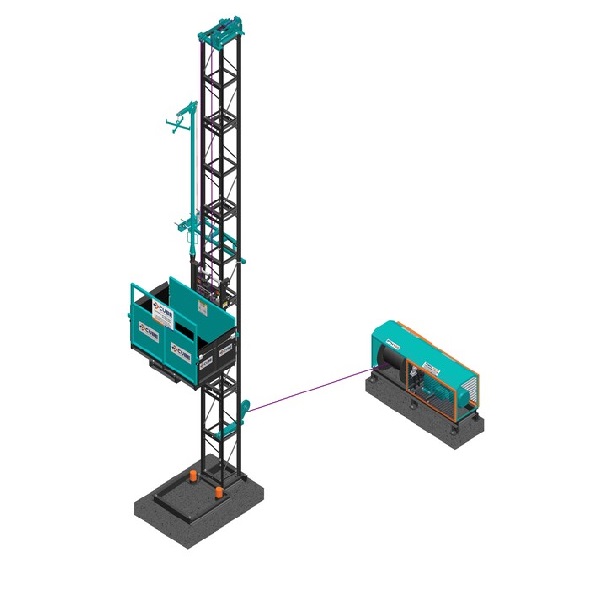

P CUBE Tower Hoist is designed to offer the most cost efficient vertical transport solution on site and is
delivered 1000 KG & 1200 KG Net capacity with three phase brake motor.
P CUBE Tower Hoist unit has Multi-Functionality, and can be used for either to transport construction
material or TMT bars.
It’s robust and simple design makes it suitable for all vertical access, including direct to buildings for
new construction or refurbishment work.
Safety is paramount in all P CUBE machines. The P CUBE Tower Hoist conform to the latest safety
standards IS 12466 : 2012 which not only ensure safety of the operation but also lays down
requirements for capacity, construction, performance and testing of Hoist.
Safety braking of carriage shall be provided to cater wire rope failure.
SPECIFICATION
| MODEL | PTH120 |
|---|---|
| Gross Load | 1500 kg. |
| Net Load | 1200 KG. |
| Wire Rope | 12 mm (6 X 36 ) |
| Speed | 30 Mtr./ Min. |
| Height | 120 Mtr. |
| Motor Capacity | 12.5HP (9.3 KW) Brake Motor |
| Mast section | Square 500 mm x 400 mm x 1.5 Mtr. L 50x50x6 mm Angle |
| Wall tie interval | 6 Mtr. |
| Rectangle Cage. (Inside) | 1.50 (L) x 0.80 (W) x 0.7 (H) mtr. |
SAFETY FUTURE
| Power fail safe brake motor |
|---|
| Top limit |
| Bottom limit |
| Safety Brake |
| Full Covered Wire Rope Drum |
| Full Covered Electrical motor and Gear box. |
