Capacity Chart

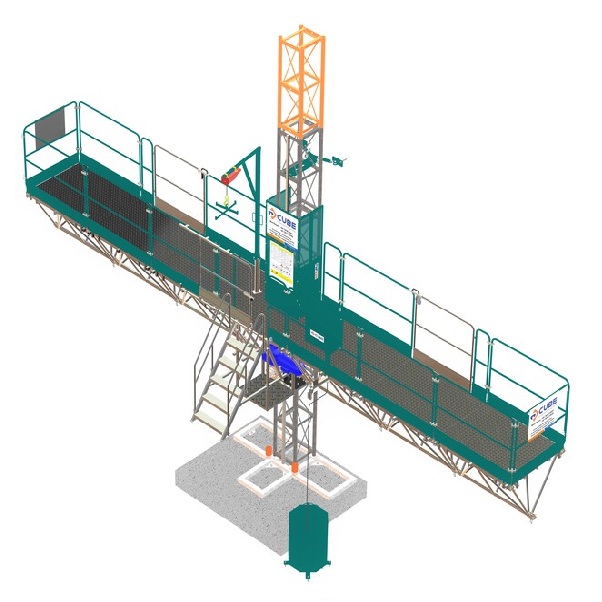

| MODEL | PWP 200 |
|---|---|
| Capacity | 2200 KG |
| Platform Length | 4.5 m – 7.5 m |
| Platform Width | 1.2 m |
| Overhang | 3.0 m |
| Speed | 7-10 Mtr./ Min. |
| Height | 120 Mtr. |
| Gear Rack Module | 5 |
| Safety Device | Yes (European Design) |
| Mast section | Square 500 mm x 400 mm x 1.5 Mtr. Angle L 50x50x6 mm Angle |
| Wall tie interval | 3 Mtr. |
| Cable Guide Interval | 6 Mtr. |
Electrical Data
| Motor Power | 1 x 5.5 KW |
|---|---|
| VFD | 7.5 KW |
| Power Supply | 400V (±5%) 50 Hz |
